Geysertech Pi2R Display (without WiFi) for iX geyser solar unit

DESCRIPTION

The Pi²R Display is the backbone of the Pi²R home system.

It has a touch sensitive LCD screen.

Display features include:

• 3.5" Colour Touch LCD to display information about the system
• Memory enough to store 6 months worth of data
• Micro logger with 6 inputs (4 Analog, 2 Digital)
• USB Host to export data in Excell format directly to FLASH Drive
• Battery: enough to power the logger and display for 12 hours

Memory

Data is stored on the 16MByte embedded FLASH memory. Logger time and date needs to be set in the menu. Data can alternatively be downloaded via USB onto a flashdrive.

Micro logger

The Logger can take four analog inputs, which can be used to measure circuit breakers in the distribution board (DB). Although any 3rd party 3.3V Arduino current sensor should also work on our system, we cannot test all 3rd party sensors to give a comprehensive list.

We offer a standard in-line type 20Amp sensor for most projects, but other capacity sensors are also available. We use a generic 3.3Volt allegro hall effect sensor commonly found inside Arduino modules. Efergy split core CT's are also available, although they are too large for most installations.

Sensors are probed continously and a true RMS value calculated and averaged over the 5min interval until the measurement is timestamed and saved onto FLASH memory.

The Logger can also take two pulse inputs, which can be connected to water or power meters that support pulse output. Most elster water meters and elster power meters give out pulses when a set unit of measure is counted (optional probes may be required from the meter manufacturer).

The Logger can also communicate with external devices over a High speed RS485 network to expand capabilities. The Logger can communicate with the Pi²R Smart and the Inverter in this manner.

USB Host

The Logger can interface with a USB 2.0 Full speed device. We have built-in drivers to handle the generic MSD type FLASH drives with FAT filesystem. Currently other filesystems do not work with our embedded drivers.

Data can be exported to Excell CVS files to visualize your data on any spreadsheet editor.

Battery

For normal installations we supply a 1100mAh battery standard. External sensors can use a significant amount of power and will drain the battery faster. The LCD backlight can also draw a considerable amount of power and shorten battery life. Althoug the sensors and LCD can drain the battery fast, it should easily last through even the longest loadshedding.

For Off-grid installations there is an optional 2200mAh battery available for extended service when no power is available.

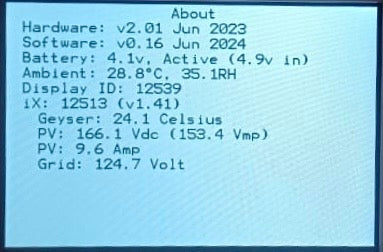

Display modes

There are multiple modes of operation. The main screen can be set up to show a default set of variables when needed. This enables the user to instantly see what is important to that specific installation without searching first.

DOWNLOADS

Visit downloads for instructions and specifications
