3 Easy steps..

to the easiest and most efficient way to REDUCE YOUR ELECTRICITY BILL. Connect the GeyserTECH Pi2R Geyser Solar Controller directly to your existing geyser.

PRODUCTS

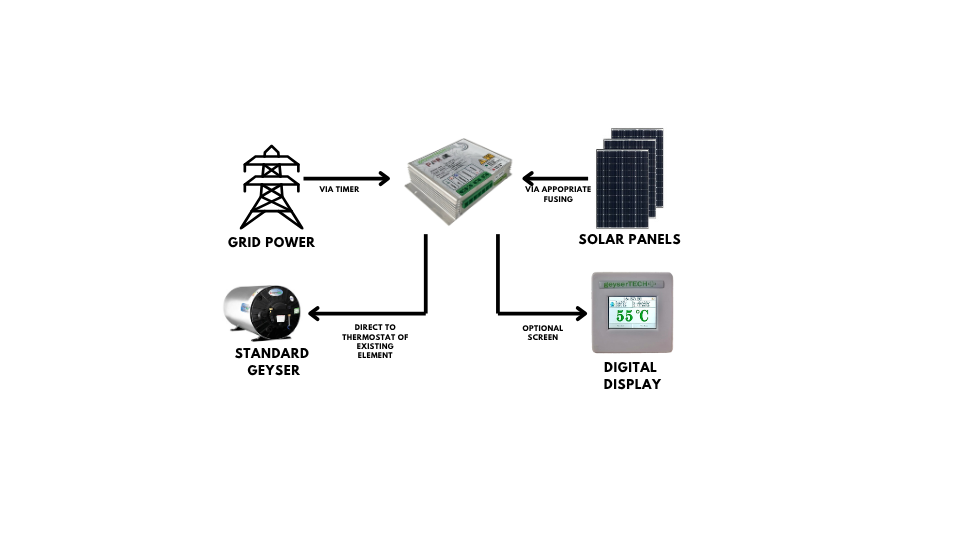

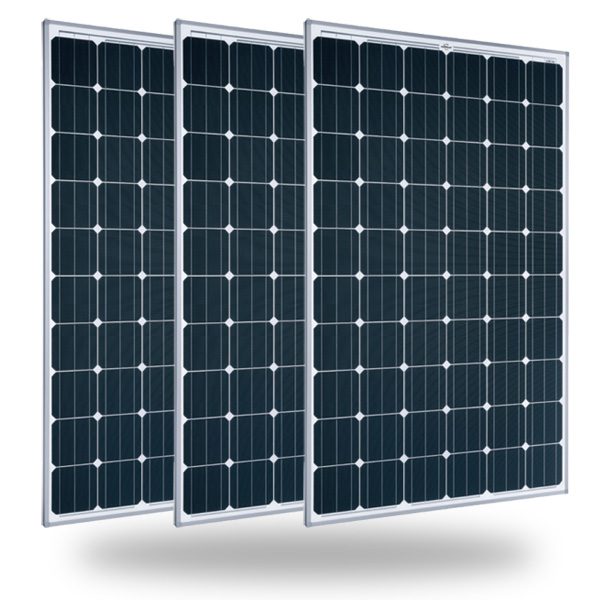

1... Connect 3 or 4 solar panels to our geyserTech unit

Mount the geyserTECH Pi2R Solar Controller in the vicinity of your geyser and connect it (via appropriate PV fuses) to an array of 2, 3 or 4 solar panels (depending on controller model)

Configuring your system

2... Connect the AC connection to our unit

The AC connection that was connected to your geyser is then connected to the geyserTECH Pi2R (again via an appropriate isolator)

Bear in mind that there is a need to limit the time that AC is made available to the unit. This can be acieved by either:

1. Installing a geyser timer

2. Connecting one of our optional Digital Displays (Pi2R iX only)

3. Switching AC off manually or using the sytem entirely off-grid

Installation Guidelines

3... Connect the unit to your geyser

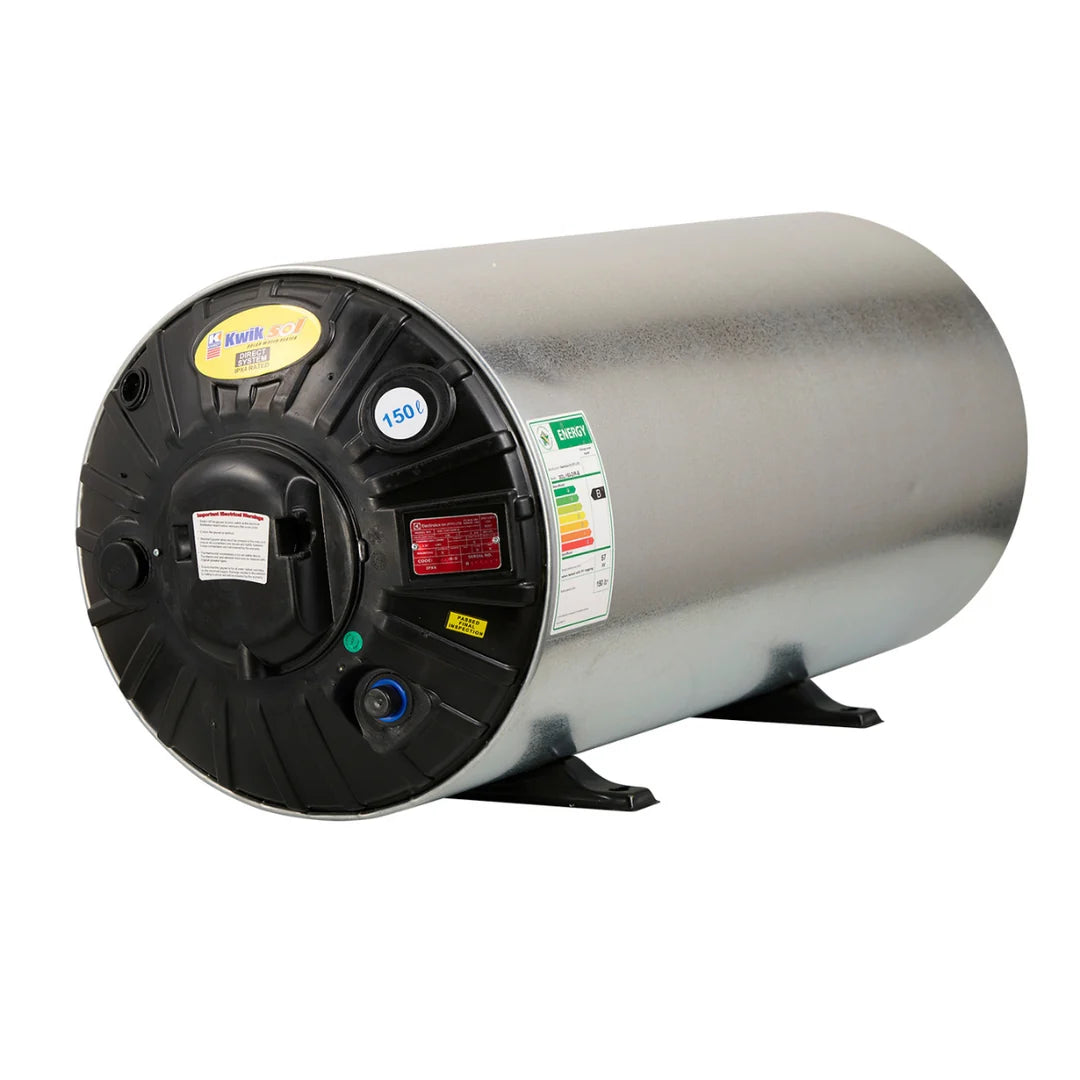

The final step is to connect the geyserTECH Pi2R unit to your existing standard electrical geyser at the same connection points on the thermostat where the AC power was originally connected.

There is NO NEED TO CHANGE neither the element nor the thermostat.

Choosing the right controller

Our Geyser Solar Controllers

  • GeyserTECH+ Micro

    The Geysertech+ Pi2R Micro is the smaller of the two units. Capable of delivering up to 7.5A, this unit is suitable for geysers between 50 and 150L with element size up to 3KW. Use it off-grid or grid connected through a digital geyser timer.

    BUY NOW

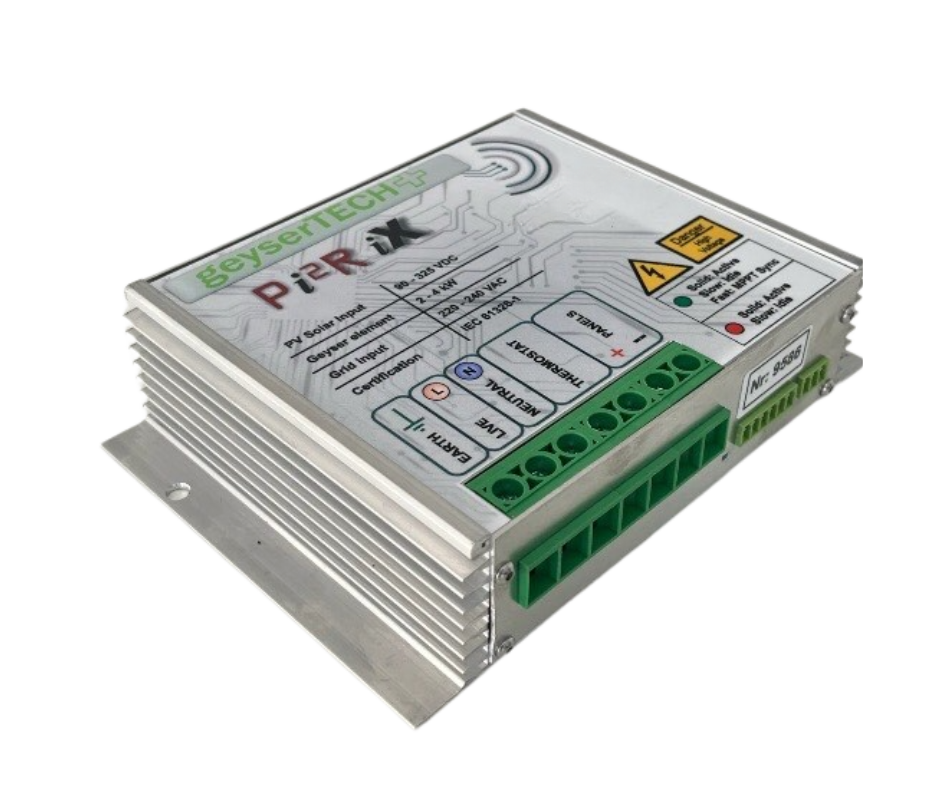

  • A GeyserTECH+ Pi2R iX Geyser Solar Controller, with a silver body and green terminal connectors on the front panel, labeled with various certifications and a model number.

    GeyserTECH+ iX

    The Geysertech+ Pi2R iX is the larger of the two units. Capable of delivering up to 15A, this unit is suitable for geysers between 50 and 300L with element size up to 4KW. Use it off-grid or grid connected through a digital geyser timer. The iX can also be paired with the optional Digital Display to form the Geysertech SMART.

    BUY NOW

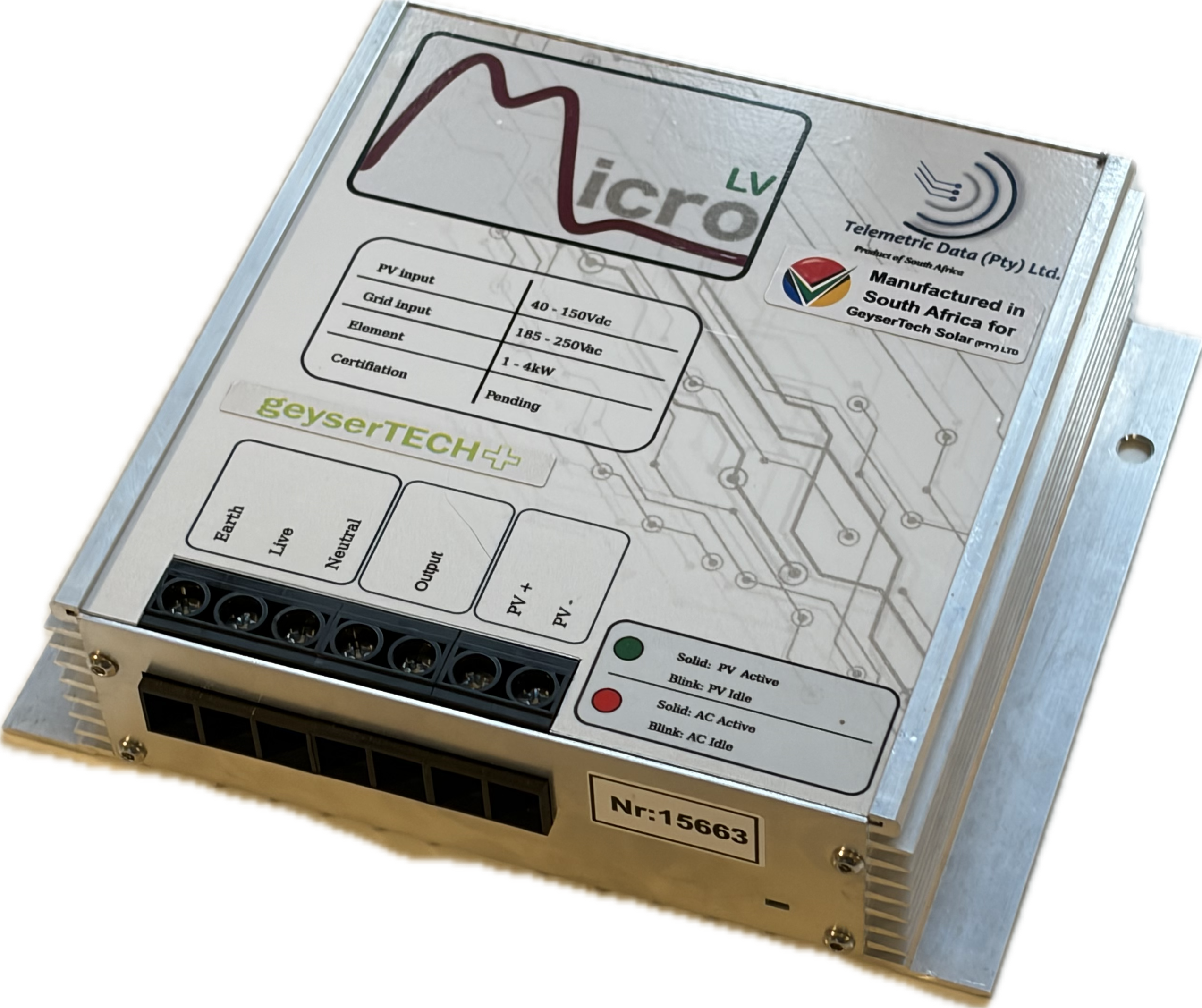

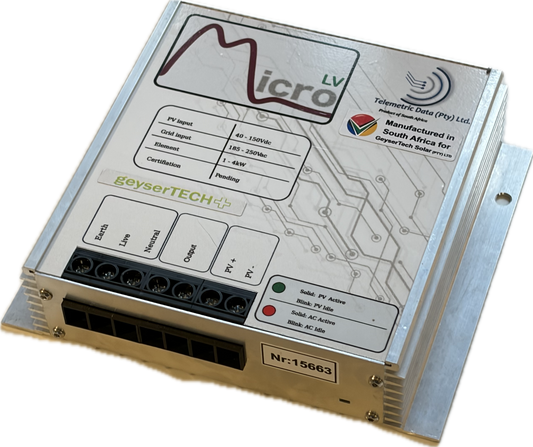

  • Geysertech Pi2R Micro LV Low Voltage Geyser Solar Controller

    GeyserTECH+ Micro LV

    The NEW Geysertech+ Pi2R Micro LV is the LOW VOLTAGE version of our popular Micro controller. Built specifically for applications where roof space is limited, the LV is designed to work with only 2 standard solar panels and is suitable for geysers up to 200L with element size up to 4KW. Use it off-grid or grid connected through a digital geyser timer. The LV can also be paired with the optional Digital Display.

    BUY NOW

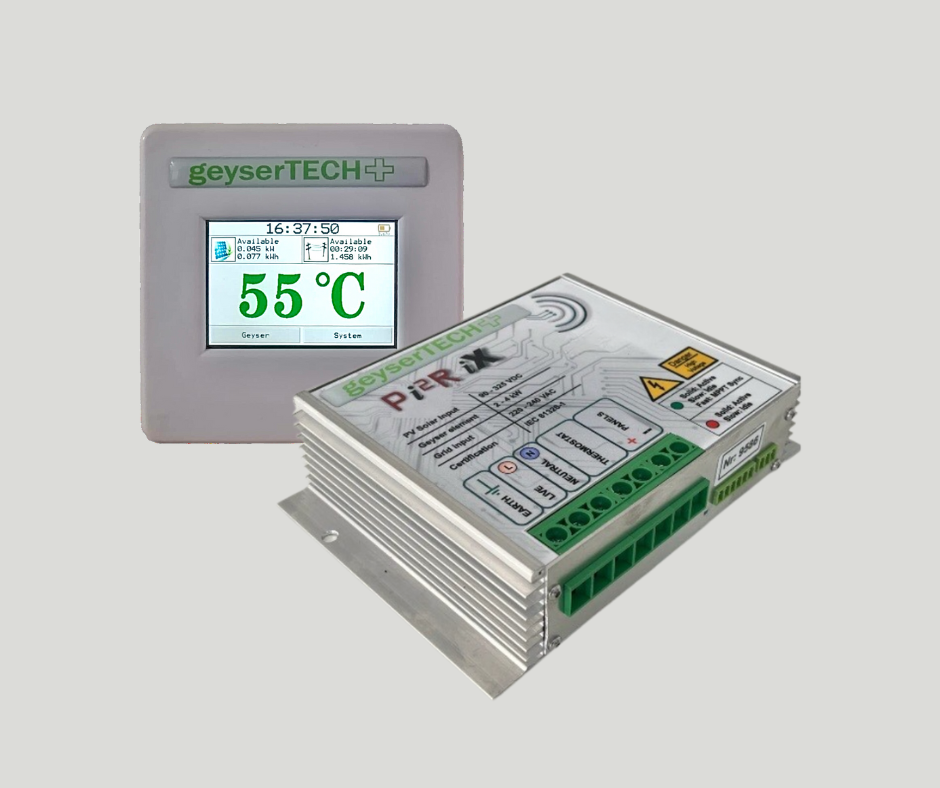

  • A geyser solar controller combo consisting of a digital touchscreen display with WiFi and a metallic rectangular controller labeled GeyserTECH+ Pi²R.

    GeyserTECH+ Smart

    The Geysertech+ iX SMART is the class-leading pairing of the Geysertech+ Pi2R iX coupled with the Geysertech Touchscreen Digital Display. The display is available in two versions, one with WiFi for mobile App-based control and one without.

    BUY NOW
SHOP

Which controller?

Reduce your electricity bill

The most affordable way to reduce your monthly electricity bill. Convert your existing geyser to Solar PV power with our new GeyserTECH+ Pi²R Micro and GeyserTECH+ Pi²R iX geyser solar controllers.

The geyser is one of the average household’s highest consumers of electricity and also one of the most difficult to connect to a solar system due to the high current draw. Our modules will fill that gap in your energy planning by feeding directly from solar PV panels to the existing geyser element - no need to change your geyser’s element.

The GeyserTECH+ Pi²R Micro and GeyserTECH+ Pi²R iX GSU’s are both AC and DC connected. This means one can set when grid power should be used to top up the temperature - typically early morning and late evening. This is achieved by means of a timer on the Micro and standard iX and by the programmable touch screen which comes with the iX SMART.

The use of photovoltaic (PV) solar panels means that the longevity of the system will be considerably better than that of thermal solar systems due to the lack of perishable piping.

Proudly Made in South Africa with a two year local warranty

More information

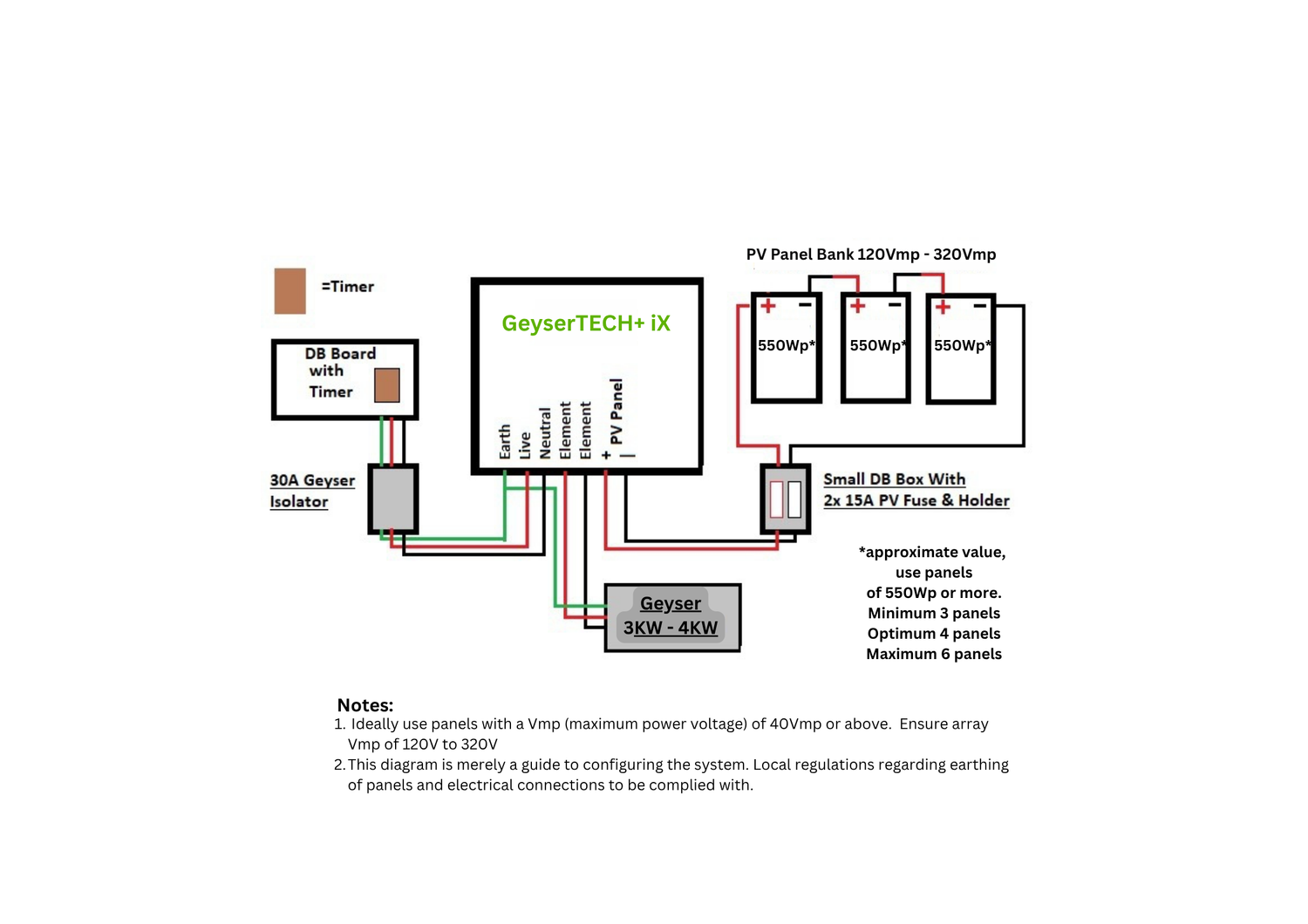

Wiring diagram for a solar panel system with GeyserTECH+ IX components on a white background.

GeyserTECH+ Pi2R iX

Connecting the iX

Configuring and installing the system is straightforward. Connect to your existing geyser. No additional plumbing required. This diagram is merely a guide to configuring the system. Local regulations regarding earthing of solar panels and electrical connections should be complied with.

Installation instructions

GeyserTECH+ Pi2R Micro

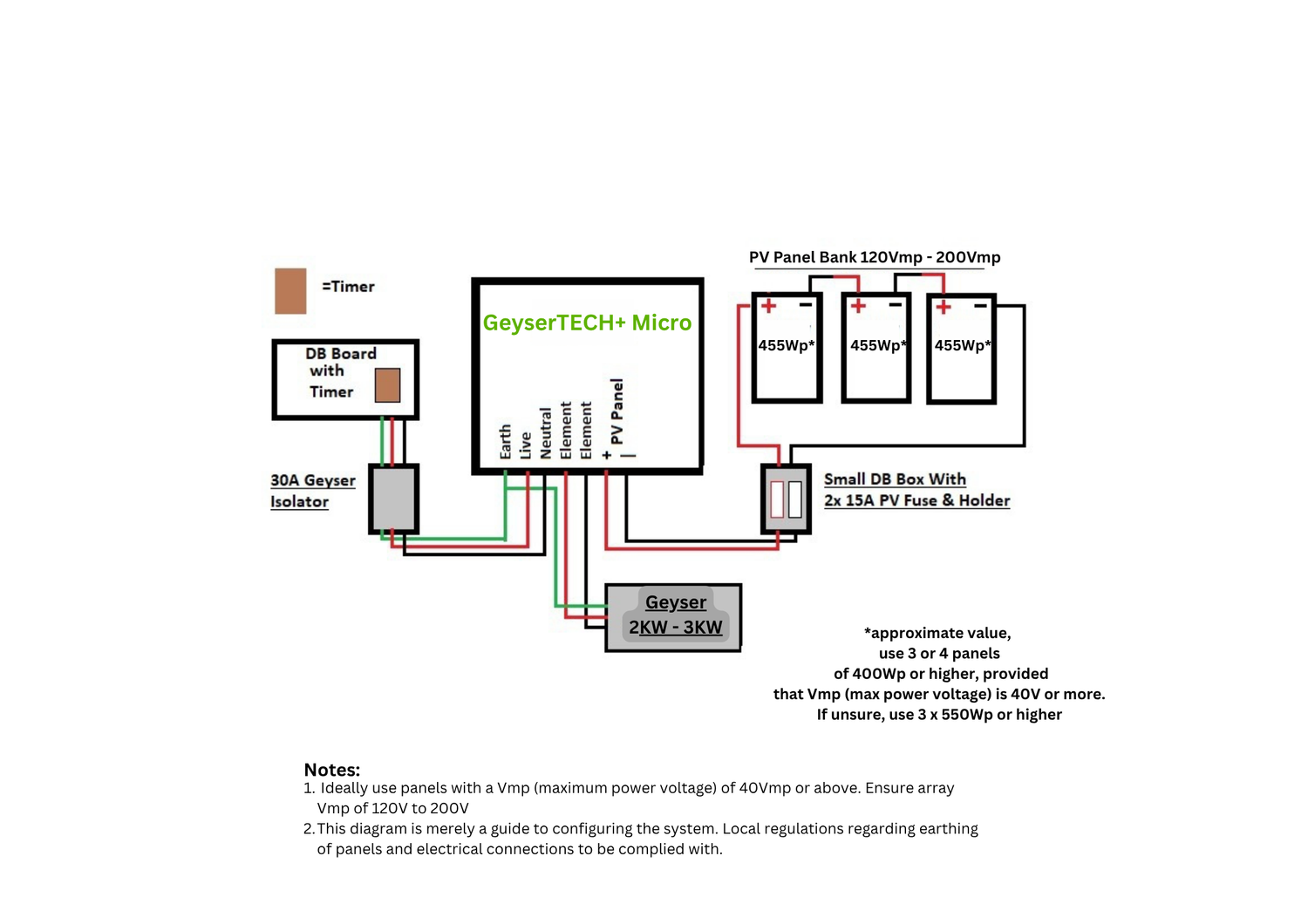

Connecting the Micro

Configuring and installing the system is straightforward. Connect to your existing geyser. No additional plumbing required. This diagram is merely a guide to configuring the system. Local regulations regarding earthing of solar panels and electrical connections should be complied with.

Installation instructions

Why a GeyserTECH+ PV Solar Geyser Controller?

You may well ask "what are the advantages of using Photovoltaic (PV) solar panels to provide your hot water as opposed to thermal solar geysers and heat pumps?" Well, there are a number..

  • connect directly to your existing geyser
  • use the existing element
  • connect to the existing standard thermostat
  • NO extra plumbing
  • NO tubes or pipes that can perish
  • easy installation
  • lower installation costs
  • PV solar panels work on light and not heat, therefore more efficient in winter
  • TWO sources of power - AC and DC
  • the units can also work entirely OFF-GRID
  • Made in South Africa
  • repairable
  • two year manufacturer's warranty
  • more aesthetically pleasing - no water tank on the roof
  • temperature can be limited, therefore no risk of boiling
  • no noisy fans
  • lower maintenance

1 7

geyserTECH+ Solar

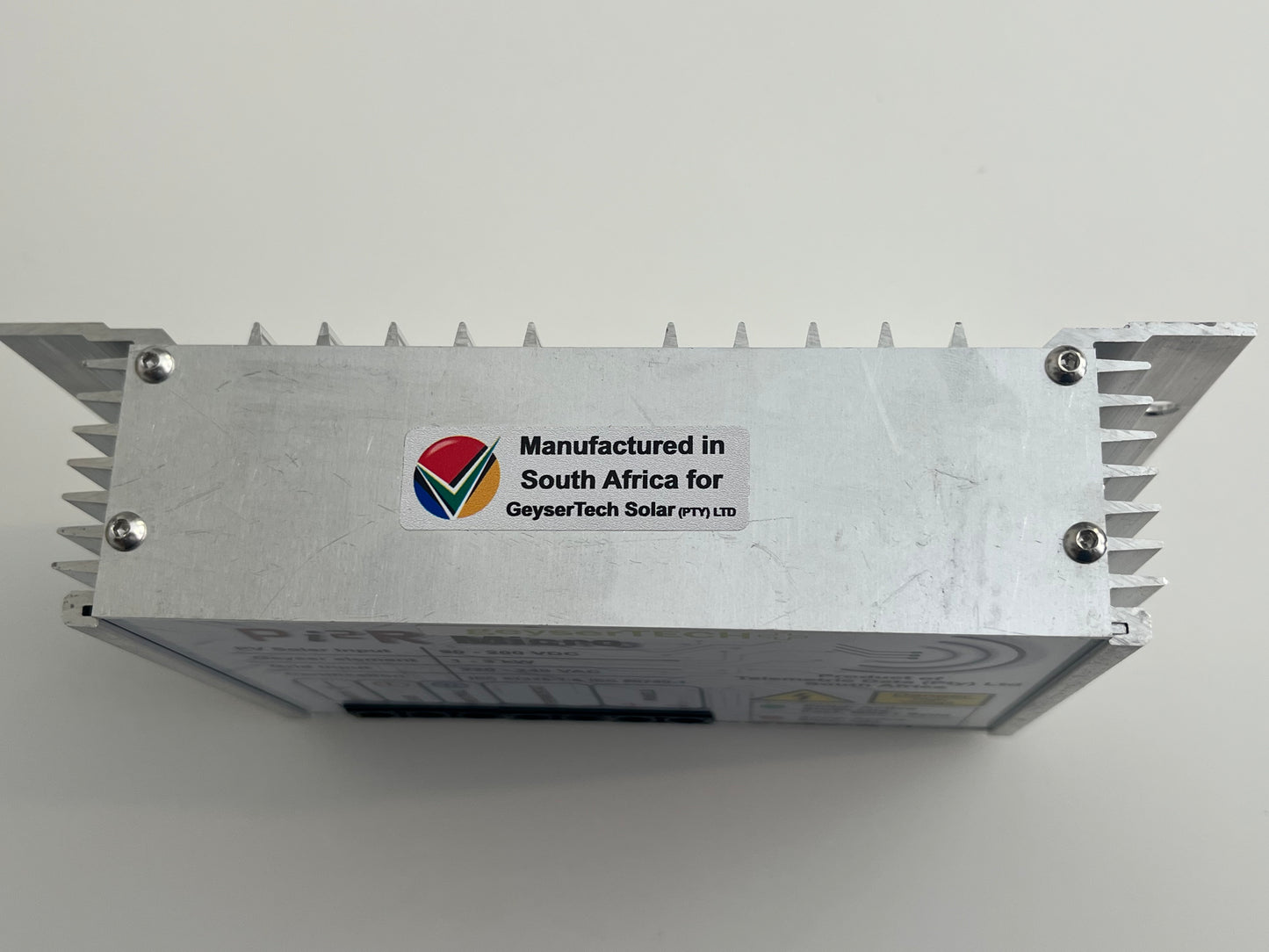

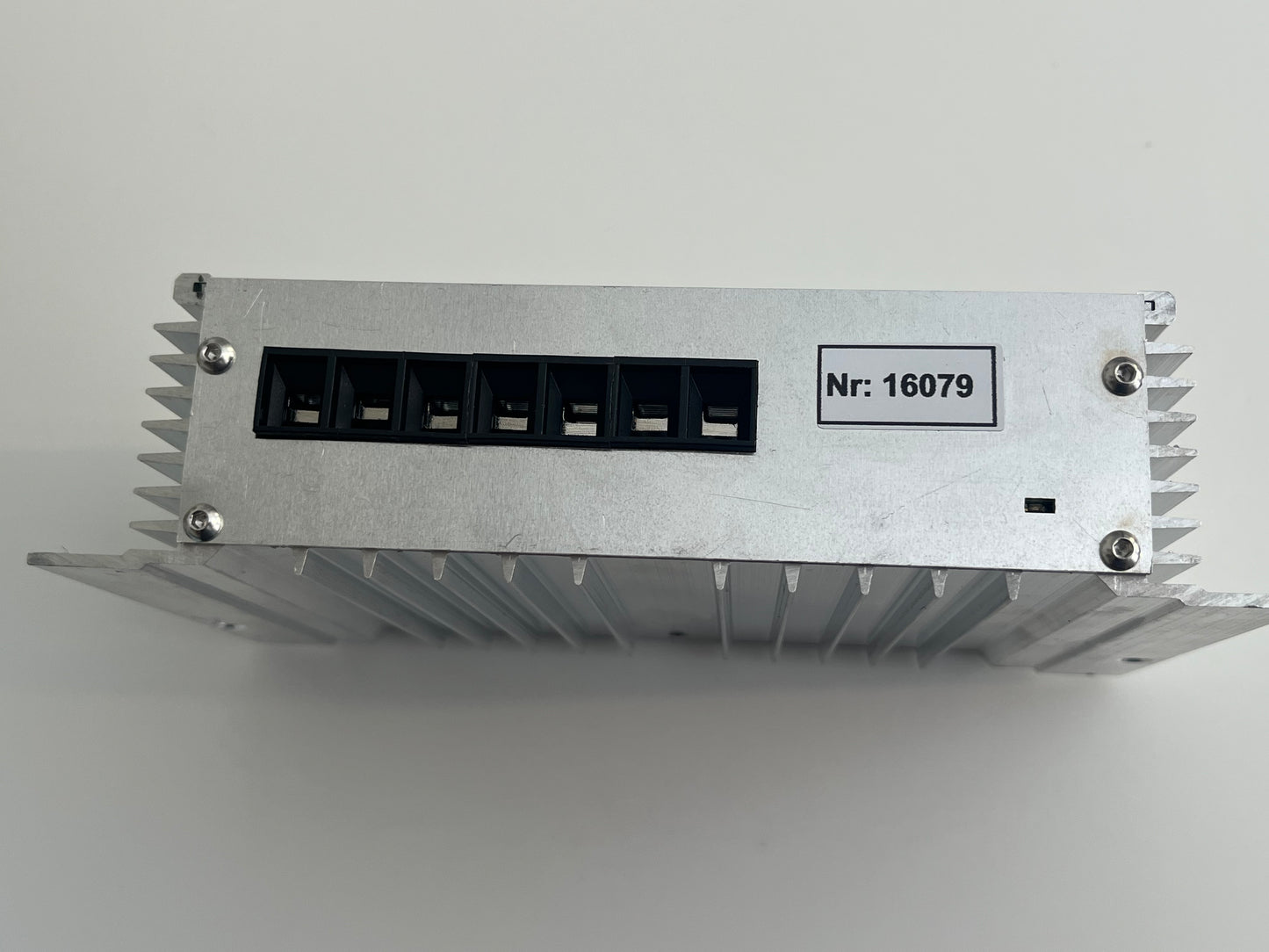

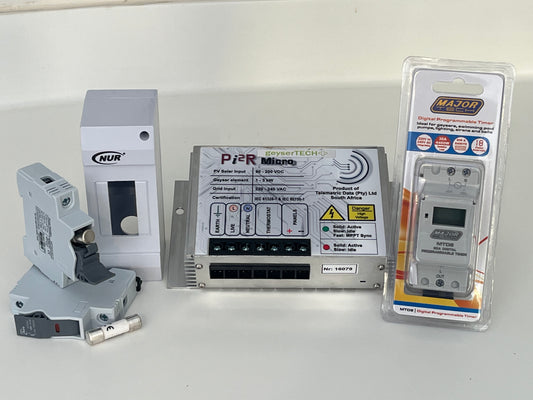

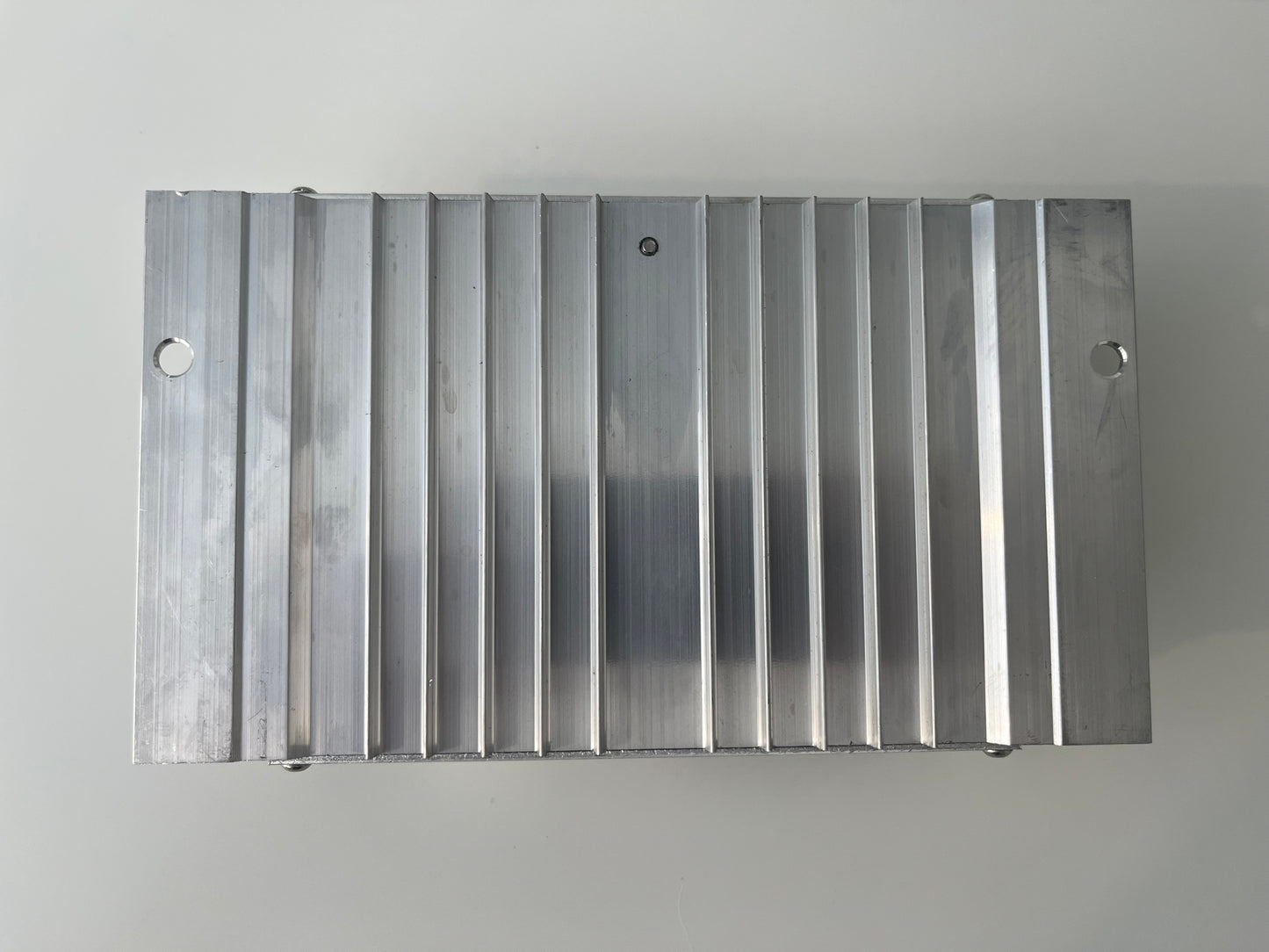

Geysertech Pi2R Micro Geyser Solar Controller

R 3,105.00 ZAR
R 3,450.00 ZAR R 3,105.00 ZAR
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

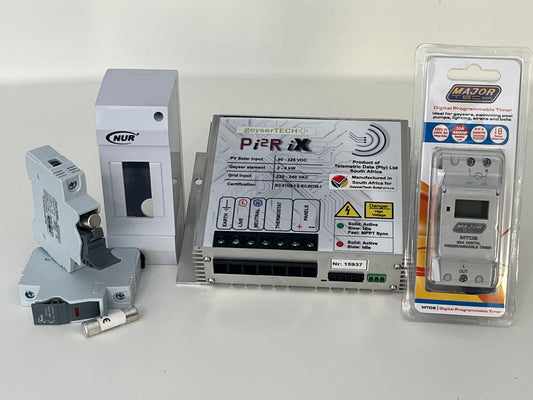

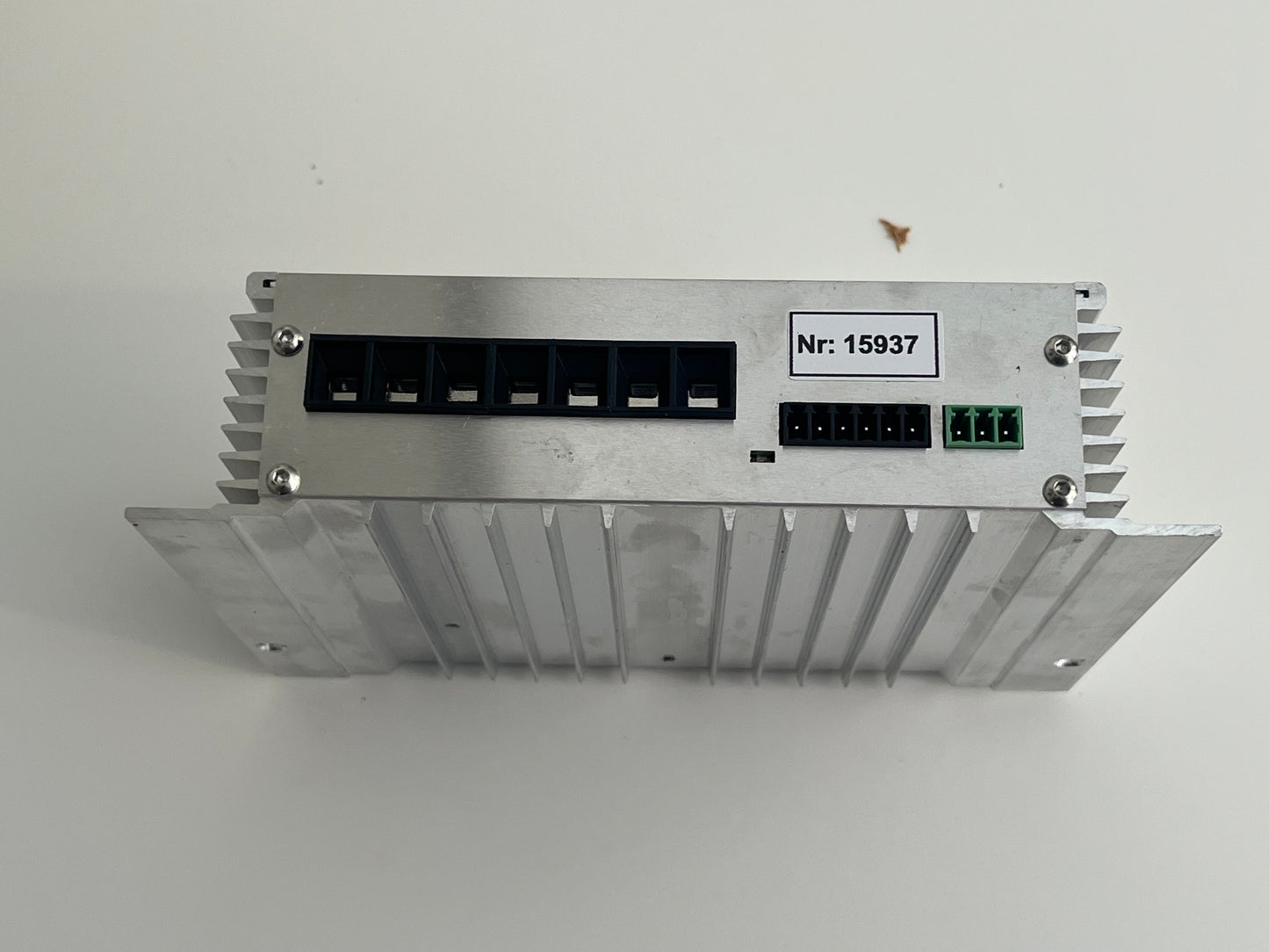

  • A GeyserTECH+ Pi2R iX Geyser Solar Controller, with a silver body and green terminal connectors on the front panel, labeled with various certifications and a model number.
1 6

geyserTECH+ Solar

Geysertech Pi2R iX Geyser Solar Controller

R 4,995.00 ZAR
R 5,750.00 ZAR R 4,995.00 ZAR
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

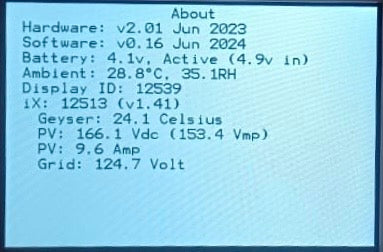

  • A white Geysertech Pi2R solar display with a touchscreen interface showing temperature and other system information.
1 3

geyserTECH+ Solar

Geysertech Pi2R Display (without WiFi) for iX Geyser Solar Controller

R 2,300.00 ZAR
R 2,300.00 ZAR R 2,300.00 ZAR
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

SHOP SOLAR GEYSER CONTROLLERS

Choose from our entry level Pi2R Micro, the more powerful Pi2R iX or pair the Pi2R iX with the optional digital touchscreen for a “Smart” system with full control of settings on-screen or via WiFi on the app on your mobile device.
