Geysertech Pi2R iX SMART Geyser Solar Power Converter Combo (WiFi)

DESCRIPTION

DESCRIPTION

The GeyserTECH+ Pi²R SMART (WiFi) is a HI-TECH geyser power converter which uses innovative new technology that converts your existing electrical geyser to solar by feeding it with two power sources i.e. AC grid power and DC PV Solar power. There is no need for backup batteries as the energy generated from Photovoltaic Solar Panels is fed directly into the geyser and stored inside the geyser as heat energy.

The GeyserTECH+ Pi²R converts the current from the PV solar modules to a modified wave which can be connected directly to the existing standard thermostat and element. This modified wave form enables the thermostat to switch power on and off as if it were normal AC power. There is no need to replace the element or thermostat.

The GeyserTECH+ Pi²R SMART (WiFi) pairs the more powerful of the available Pi²R models with the Digital Touchscreen Display (this model with WiFi capability).

It can be AC-connected or used completely Off-Grid.

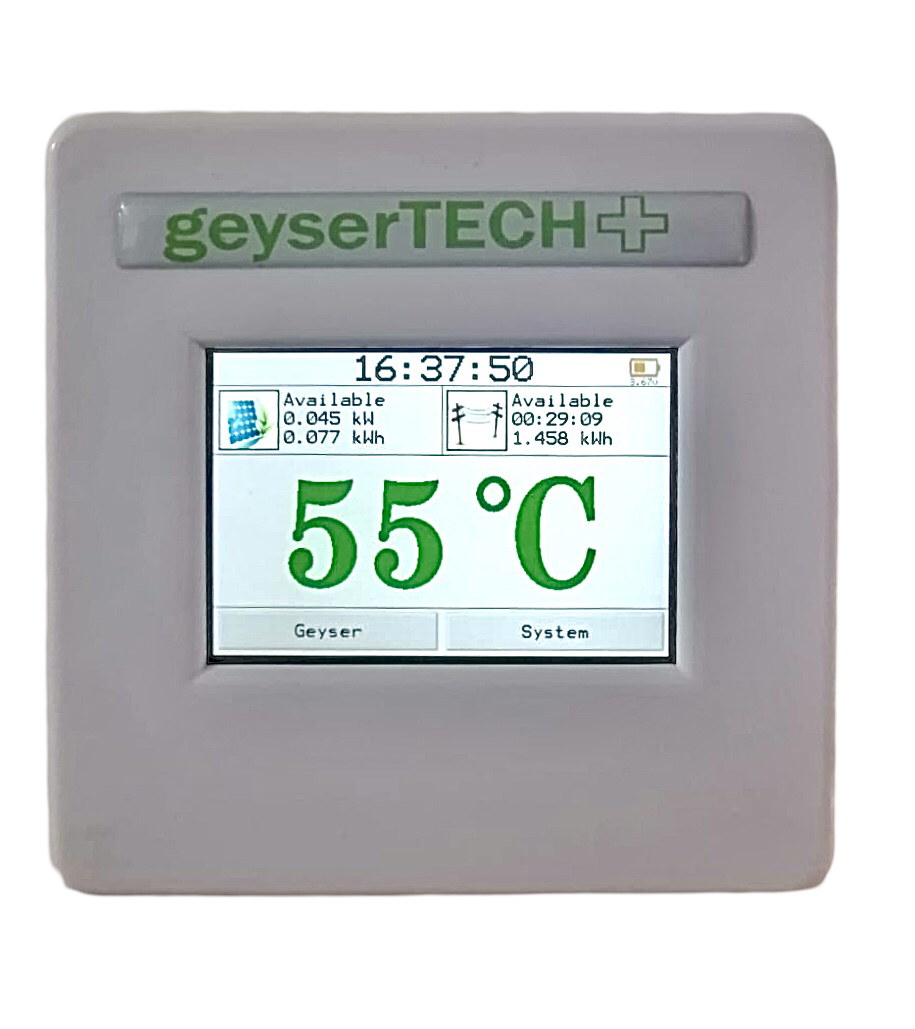

The Digital Touchscreen Display allows for control and monitoring of the system. There are multiple timers to control the time that AC is made available to the unit as well as independent settings for AC and Solar heating temperatures. The Display also has an override function which will force AC to the system in the event of it being needed. The display also tracks solar production and usage of both AC and DC power. This version of the display has built in WiFi capability which allows for control and monitoring of the system via an online application.

FEATURES

• Built in MPPT with output of up to 15A

• Suitable for geysers up 300L with elements up to 4KW
• AC timers and temperature settings controlled by the Digital Touchscreen Display
• Can be used off-grid
• Uses standard AC element
• SANS 10400 compliant
• Easy installation
• NRCS registered
• Made in South Africa
• Repairable
• 2 year manufacturer's warranty

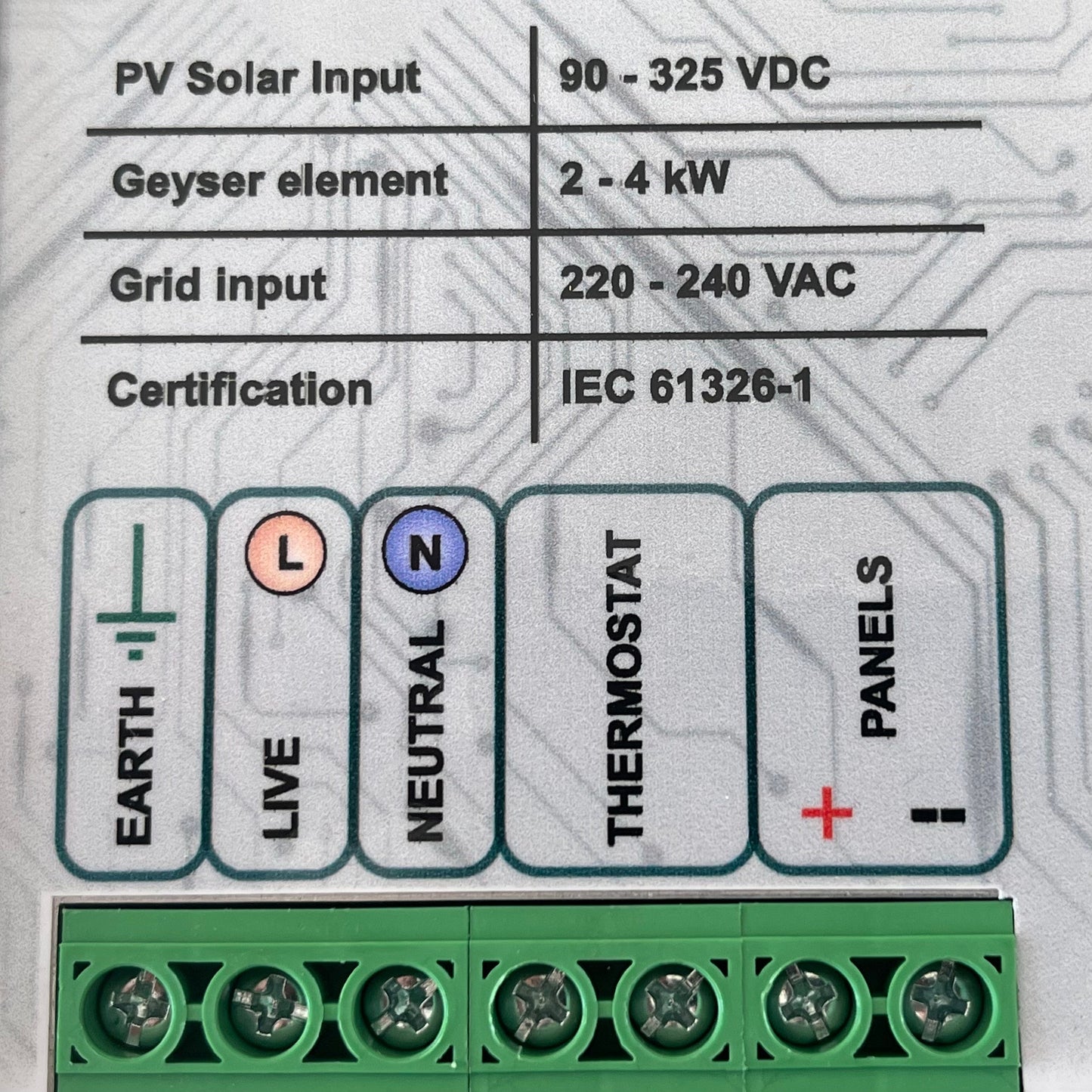

SPECIFICATIONS

• PV solar input voltage: 90-325 Vmp (voltage @ max power)(recommended minimum 120Vmp)
• Grid voltage: 200-240 Vac
• MPPT range: 120-320Vmp
• Internal current limiter: 14A
• Element size: 2-4 KW
• Geyser capacity: 50-300 Litres
• Dimensions (mm): 180*125*45
• Weight (g): 750
• Protection: IP30

CERTIFICATION

• EMC: IEC 61326-1
• Safety: IEC 60730-1
• NRCS: RCC: 2405050

KIT INCLUDES

• GeyserTECH+ Pi²R iX geyser solar power converter
• Digital Touchscreen Display (with WiFi)
• Temperature sensor
• Battery for Display
• Communication cable (6m of 6-core + 3m of 4-core) plus connector blocks
• 4x4 PVC extension box

DOWNLOADS

Visit downloads for instructions and specifications
